AisleCop® Dual Pedestrian / Dual Vehicle Gate System

Helps manage pedestrians and forklifts for high-traffic, low-visibility, egress points and other dangerous areas

SKU: ACPS04H02V02

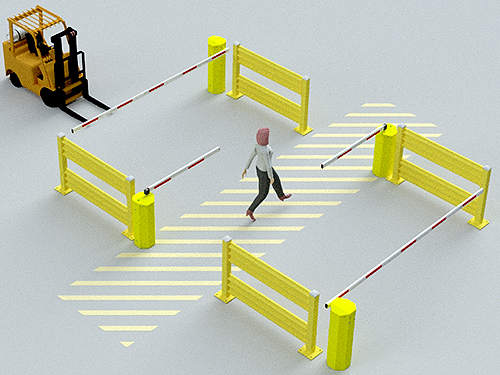

The AisleCop^® Dual Pedestrian / Dual Vehicle Gate System helps control vehicular and pedestrian traffic where pedestrian and industrial vehicle traffic patterns cross. Triggered by motion detectors, two pedestrian gates and two vehicle boom arms open and close based on preferences you specify, whether you want vehicles or pedestrians to have priority for a particular crossing. In either case, pedestrian gates close when a forklift is detected and boom arms lower to warn vehicles of pedestrians crossing the intersection. To further enhance pedestrian safety, flashing lights and an audible alarm are triggered when the system is activated. Custom control and sensor configurations are available upon request. Guardrail sold separately.

$35,926.00

Inquire

Specifications

Height: 39.5"
Color: Safety Yellow
System Type: Automatic Dual Pedestrian - Dual Vehicle
# of Gates: 2 Pedestrian and 2 Aisle Gates
Pedestrian Gate Width (Closed): 54-3/8"
Pedestrian Gate Height: 39-1/2"
Pedestrian Gate Swing Radius: 47-3/8"
Pedestrian Gate Depth (Open): 57-5/18"
Pedestrian & Vehicle Gate Open/Close Time: 2.3 Seconds
Per Gate Power Consumption (Pedestrian and Vehicle): 65W
Gate (each) Motor Voltage: 115 VAC
Gates Internal Control Voltage: 24 VDC
Pedestrian Gate Weight - Lbs.: 147
Gates Operating Temp. Range: -4 to 140° F. (-20 to 60° C)
Vehicle Gate Cabinet WxD: 11-3/4"
Vehicle Gate Cabinet Height: 40-7/8"
Vehicle Gate Width: Select from 85-3/4" (6' arm); 109-3/4" (8' arm); 133-3/4" (10' arm); 157-3/4" (12' arm)
Vehicle Gate Height (Open Gate): 116" (6' arm); 140" (8' arm); 164" (10' arm); 188" (12' arm)
Vehicle Gate Weight (Lbs.): 110
Boom Arm Length: 8', 10' or 12'
Tested: Prior to Shipment
Overall Dimensions: 14"W x 41"H x 108"L each gate (space required for gate to operate properly)
System Components: 2 motorized, fully enclosed push button pedestrian gates with red flashing LED lights; 2 crossing arm gates with arms and foam bottom padding (specify length up to 12 ft.), 1 auto reverse feature (automatically reverses if gate contacts object/person), 2 forklift motion sensors, 1 pedestrian sensor, 1 control wiring enclosure with key lock panel, and PLC-based control package.
Warranty: Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
Weight: 590.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

Description

Motion sensors detect the presence of a forklift or other vehicle in the traffic lane
Gates can be programmed to pedestrian priority (static state is swing gate open and boom arms lowered), or vehicle priority (static state is swing gate closed and boom arms raised)
When set for pedestrian priority, pedestrian gates remain open and boom arms lowered unless traffic is detected in the vehicle lane, at which time the pedestrian gates close and remain closed while the boom arms raise and remain up until traffic is no longer detected in the traffic lane
When set for vehicle priority, pedestrian gates are closed and boom arms are raised until a pedestrian presses the button on top of the gate control box, at which time flashing lights and the audible alarm are triggered. The pedestrian gates open and the vehicle boom arms lower if no vehicle traffic is detected in the traffic lane. If traffic is detected, the pedestrian gates remain closed and boom arms raised until traffic is no longer detected in the lane
Pedestrian gates close after a programmed time delay unless sensors detect pedestrians remaining in the crosswalk
Pedestrian gates will refuse to open anytime a vehicle is detected in the traffic lane, even if pedestrian has pressed gate button to activate gate opening
The pedestrian gates may be manually opened or closed using moderate pressure in the event of a power outage
Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
AisleCop® systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop® gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.

Documentation

AisleCop® Brochure (272 KB, PDF, Opens in new window)
AisleCop® ROI (171KB, PDF, Opens in new window)

Shipping

Lead Time: 14 weeks + transit time

Weight: 590.0 lbs. ea.

Get Shipping Estimate

Country:

Zip:

Warranty

Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
