AisleCop® Dual Pedestrian Gate System

Helps manage pedestrians in high-traffic, limited-visibility, and other dangerous forklift aisles

SKU: ACPS02H02V00

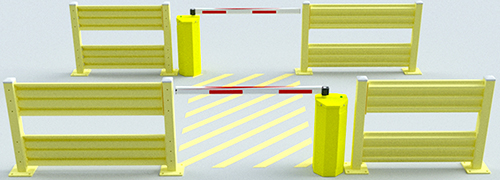

The AisleCop^® Dual Pedestrian Gate System helps protect pedestrians through motion-detection and traffic control of dangerous aisles. The gates (typically facing each other) help limit pedestrian access to aisles when a forklift or other industrial equipment is present. The gates open and allow pedestrians to cross only after traffic has cleared. To enhance pedestrian safety, flashing lights and an audible alarm are triggered each time the system is activated. Custom control and sensor configurations are available upon request. Guardrail sold separately.

$24,384.00

Inquire

Specifications

Height: 39.5"
Color: Safety Yellow
System Type: Automatic Dual Pedestrian
# of Gates: 2 Pedestrian Gates
Pedestrian Gate Width (Closed): 54-3/8"
Pedestrian Gate Height: 39-1/2"
Pedestrian Gate Swing Radius: 47-3/8"
Pedestrian Gate Depth (Open): 57-5/18"
Pedestrian Gate Open/Close Time: 2.3 Seconds
Per Gate Power Consumption: 65W
Ped. Gate Motor Voltage: 115 VAC
Ped. Gate Internal Control Voltage: 24 VDC
Pedestrian Gate Weight - Lbs.: 147
Ped. Gate Operating Temp. Range: -4 to 140° F. (-20 to 60° C)
System Components: 2 motorized, fully enclosed push button activated pedestrian gates with barrier arms (up to 40-1/2") and red flashing LED lights, 2 forklift motion sensors, 1 pedestrian sensor, control wiring enclosure with key lock panel, and PLC-based control package.
Warranty: Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
Tested: Prior to Shipment
Weight: 300.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

Description

Motion sensors detect the presence of a forklift or other vehicle in the traffic lane
Gates can be programmed to pedestrian priority (static state is gate open), or vehicle priority (static state is gate closed)
When set for pedestrian priority, gates are open unless traffic is detected in the vehicle lane, upon which time, flashing lights and the audible alarm trigger, and the gates close. Gates remain closed until traffic is no longer detected in the traffic lane
When set for vehicle priority, gates are closed until a pedestrian presses the button on top of the gate control box, triggering flashing lights and an audible alarm. If there is no traffic detected, the gates open. If traffic is detected, the gates remain closed until traffic is no longer detected in the traffic lane
When set for vehicle priority, after opening, the gates will close after a programmed time delay unless sensors detect pedestrians remaining in the crosswalk
Pedestrian gates will refuse to open anytime a vehicle is detected in the traffic lane, even if pedestrian has pressed gate button to activate gate opening
The pedestrian gates may be manually opened or closed using moderate pressure in the event of a power outage
Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
AisleCop® systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop® gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.

Documentation

AisleCop® Brochure (272 KB, PDF, Opens in new window)
AisleCop® ROI (171KB, PDF, Opens in new window)

Shipping

Lead Time: 14 weeks + transit time

Weight: 300.0 lbs. ea.

Get Shipping Estimate

Country:

Zip:

Warranty

Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
