AisleAlert™ Automated Pedestrian Detection Portal

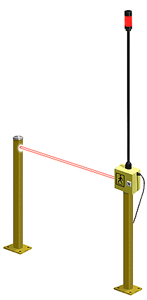

The AisleAlert™ pedestrian detection system is a simple way to automatically trigger a flashing and distinctive audible alarm light that helps warn forklift drivers that people are present. A retro-reflective photo eye sensor detects pedestrians as they pass between the system posts and triggers an LED strobe light mounted at forklift driver eye level height. This combination of visibility and sound helps forklift drivers perceive that pedestrians are in the traffic lane.
Inquire SSL site seal - click to verify
  • Color: Safety Yellow
  • System Type:  AisleAlert™ Pedestrian Detection Portal
  • Height (Overall):  90"
  • Sensor Post Height:  42"
  • Reflector Post Height:  50"
  • Post Size:  2" x 2"
  • AisleAlert™ Light Post Height:  48"
  • Sensor Range/Post Span:  Up to 20 ft.
  • Included Components:  (1) AisleAlert™ control module, (1) reflective target marker, (1) 42" sensor post, (1) 50" reflector post.
  • Light Type:  LED Red
  • Tested:  Prior to Shipment
  • Weight: 160.0 lbs. ea.
