AisleCop Gen5 Dual Pedestrian Gate System with Pedestrian Priority

Helps manage pedestrians in high-traffic, limited-visibility, and other dangerous forklift aisles

SKU: AC2G2P-P

Manufacturer: Cisco-Eagle

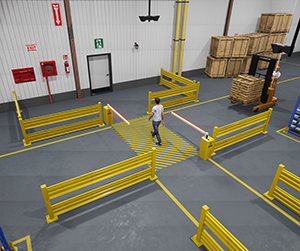

The AisleCop Dual Pedestrian Gate System helps protect pedestrians through motion-detection and traffic control of dangerous aisles. The gates (typically facing each other) help limit pedestrian access to aisles when a forklift or other industrial equipment is present. Pedestrian gates will remain in an open state to allow workers to cross. The open gates block the cross traffic for forklifts and other vehicles. When a forklift needs to cross, the driver can activate a hanging pull-cord. Motion detectors will then scan the intersection for pedestrians and close their gates when none are detected and allow the forklift to cross.

Note: Pedestrian gate arms ship in 6ft. length and can be cut to desired length following the included instructions.

$23,374.00

Inquire

Specifications

Height: 39.5"
Color: Safety Yellow
System Type: Dual Pedestrian
Priority: Pedestrian
# of Gates: 2 Pedestrian
Pedestrian Gate Height: 39-1/2"
Pedestrian Gate Open/Close Time: 2.3 Seconds
Per Gate Power Consumption: 65W
Ped. Gate Motor Voltage: 115 VAC
Ped. Gate Internal Control Voltage: 24 VDC
Pedestrian Gate Weight - Lbs.: 147
Ped. Gate Operating Temp. Range: -4 to 140° F. (-20 to 60° C)
System Components: 2 motorized, fully enclosed push button activated pedestrian gates with barrier arms and red flashing LED lights, 2 forklift motion sensors, 2 pull cords, 1 pedestrian sensor, control wiring enclosure with key lock panel, and PLC-based control package.
Warranty: Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
Tested: Prior to Shipment
Weight: 300.0 lbs. ea.

Description

Motion sensors detect the presence of a forklift or other vehicle in the traffic lane
Gates are open unless traffic is detected in the vehicle lane, upon which time, flashing lights and the audible alarm trigger, and the gates close. Gates remain closed until traffic is no longer detected in the traffic lane
The pedestrian gates may be manually opened or closed using moderate pressure in the event of a power outage
Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
AisleCop systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.

Documentation

How to Field Cut an AisleCop Gate (PDF, opens new window)

Shipping

Lead Time: 2-3 weeks + transit time

Contact Cisco-Eagle to get a Shipping Rate for this item

Warranty

Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
