AisleCop Gen5 Dual Pedestrian Gate System with Vehicle Priority

Helps manage pedestrians in high-traffic, limited-visibility, and other dangerous forklift aisles

View Large Images

SKU: AC2G2P-V

Manufacturer: Cisco-Eagle

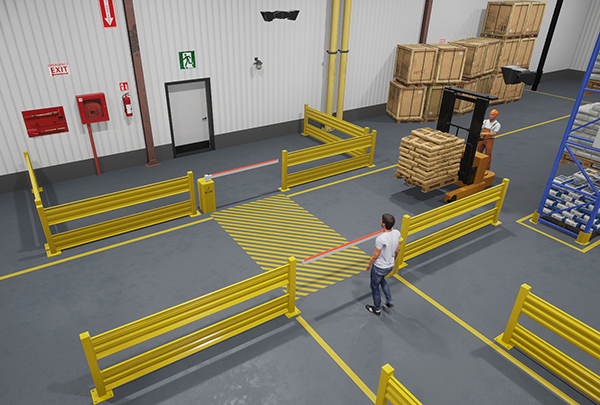

The AisleCop Dual Pedestrian Gate System helps protect pedestrians through motion-detection and traffic control of dangerous aisles. The gates (typically facing each other) help limit pedestrian access to aisles when a forklift or other industrial equipment is present. Pedestrian gates will stay in a closed state to allow forklifts and other industrial vehicles to cross freely. When a pedestrian needs to cross, they will activate the button on the AisleCop pedestal. Motion detectors will then scan the intersection for forklifts and open the gates when there is none detected.

Note: Pedestrian gate arms ship in 6ft. length and can be cut to desired length following the included instructions.

$22,626.00

Inquire

Video

Specifications

Height: 39.5"
Color: Safety Yellow
System Type: Dual Pedestrian
Priority: Vehicle
# of Gates: 2 Pedestrian
Pedestrian Gate Height: 39-1/2"
Pedestrian Gate Open/Close Time: 2.3 Seconds
Per Gate Power Consumption: 65W
Ped. Gate Motor Voltage: 115 VAC
Ped. Gate Internal Control Voltage: 24 VDC
Pedestrian Gate Weight - Lbs.: 147
Ped. Gate Operating Temp. Range: -4 to 140° F. (-20 to 60° C)
System Components: 2 motorized, fully enclosed push button activated pedestrian gates with barrier arms and red flashing LED lights, 2 forklift motion sensors, 1 pedestrian sensor, control wiring enclosure with key lock panel, and PLC-based control package.
Warranty: Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
Tested: Prior to Shipment
Weight: 150.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

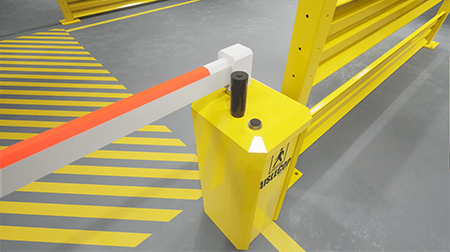

When a pedestrian needs to cross, they will activate the button on the AisleCop pedestal.

Pedestrian gates remain closed if the sensors detect the presence of a forklift in the aisle.

Motion detectors will then scan the intersection for forklifts and open the gates when there is none detected.

Pedestrian gates remain open while the sensors detect workers walking through. Once none are detected, the pedestrian gates will close allowing forklifts to continue through the aisle.

When a pedestrian needs to cross, they will activate the button on the AisleCop pedestal.

Description

Motion sensors detect the presence of a forklift or other vehicle in the traffic lane
Gates are closed until a pedestrian presses the button on top of the gate control box, triggering flashing lights and an audible alarm. If there is no traffic detected, the gates open. If traffic is detected, the gates remain closed until traffic is no longer detected in the traffic lane
After opening, the gates will close after a programmed time delay unless sensors detect pedestrians remaining in the crosswalk
Pedestrian gates will refuse to open anytime a vehicle is detected in the traffic lane, even if pedestrian has pressed gate button to activate gate opening
The pedestrian gates may be manually opened or closed using moderate pressure in the event of a power outage
Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
AisleCop systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.

Documentation

How to Field Cut an AisleCop Gate (PDF, opens new window)

Shipping

Lead Time: 2-3 weeks + transit time

Contact Cisco-Eagle to get a Shipping Rate for this item

Warranty

Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
