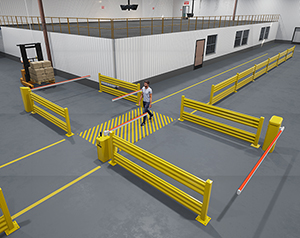

AisleCop Gen5 Dual Vehicle/Pedestrian Gate System with Pedestrian Priority

• Height: 39.5"
• Color: Safety Yellow
• System Type:  Dual Pedestrian / Dual Vehicle
• Priority:  Pedestrian
• # of Gates:  2 Pedestrian and 2 Vehicle
• Pedestrian Gate Height:  39-1/2"
• Pedestrian & Vehicle Gate Open/Close Time:  2.3 Seconds
• Per Gate Power Consumption (Pedestrian and Vehicle):  65W
• Gate (each) Motor Voltage:  115 VAC
• Gates Internal Control Voltage:  24 VDC
• Pedestrian Gate Weight - Lbs.:  147
• Gates Operating Temp. Range:  -4 to 140° F. (-20 to 60° C)
• Vehicle Gate Cabinet WxD:  11-3/4"
• Vehicle Gate Cabinet Height:  40-7/8"
• Vehicle Gate Weight (Lbs.):  110
• Tested:  Prior to Shipment
• Overall Dimensions:  14"W x 41"H x 108"L each gate (space required for gate to operate properly)
• System Components:  2 motorized, fully enclosed push button pedestrian gates with red flashing LED lights; 2 crossing arm gates with arms and foam bottom padding, 1 auto reverse feature (automatically reverses if gate contacts object/person), 2 forklift motion sensors, 2 pull cords, 1 pedestrian sensor, 1 control wiring enclosure with key lock panel, and PLC-based control package.
• Warranty:  Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
• Weight: 590.0 lbs. ea.

• Motion sensors detect the presence of a forklift or other vehicle in the traffic lane
• Pedestrian gates remain open and boom arms lowered unless traffic is detected in the vehicle lane, at which time the pedestrian gates close and remain closed while the boom arms raise and remain up until traffic is no longer detected in the traffic lane
• Pedestrian gates will refuse to open anytime a vehicle is detected in the traffic lane, even if pedestrian has pressed gate button to activate gate opening
• The pedestrian gates may be manually opened or closed using moderate pressure in the event of a power outage
• Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
• AisleCop systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm.  For more information – www.p65warnings.ca.gov.

• How to Field Cut an AisleCop Gate (PDF, opens new window)

Lead Time: 2-3 weeks + transit time

Contact Cisco-Eagle to get a Shipping Rate for this item
