AisleCop® Single Pedestrian Gate System

Helps protect pedestrians from industrial traffic at warehouse entry doors, blind spots, and other dangerous areas

SKU: ACPS01H01V00

The AisleCop^® Single Pedestrian Gate System helps protect pedestrians through a motion sensor controlled gate system. When closed, a pedestrian exiting an area such as an office wing and entering a traffic aisle pushes a button. The AisleCop® system scans for traffic and opens, allowing the pedestrian to cross or enter an aisle. The gate will not open if traffic is detected. To enhance safety, flashing lights and an audible alarm are triggered each time the system is activated. Customized control and sensor configurations are available upon request. Guardrail sold separately.

$16,193.00

Inquire

Specifications

Height: 39.5"
Color: Safety Yellow
System Type: Single Pedestrian
Dimensions: 14"W x 34"H x 60"L
Pedestrian Gate Width (Closed): 54-3/8"
Pedestrian Gate Height: 39-1/2"
Pedestrian Gate Swing Radius: 47-3/8"
Pedestrian Gate Depth (Open): 57-5/18"
Pedestrian Gate Open/Close Time: 2.3 Seconds
Per Gate Power Consumption: 65W
Ped. Gate Motor Voltage: 115 VAC
Ped. Gate Internal Control Voltage: 24 VDC
Pedestrian Gate Weight - Lbs.: 147
Ped. Gate Operating Temp. Range: -4 to 140° F. (-20 to 60° C)
System Components: 1 motorized, fully enclosed, push-button activated pedestrian gates with 36" lighted swing arm, stop signs, red flashing LED lights, 2 forklift motion sensors, 1 pedestrian sensor, control wiring enclosure with key lock panel, and PLC-based control package
Warranty: Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
Installation: Not included; buyer is responsible for wiring electricity to the control box
Tested: Prior to Shipment
Weight: 150.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

Description

Motion sensors detect the presence of a forklift or other vehicle in the traffic lane

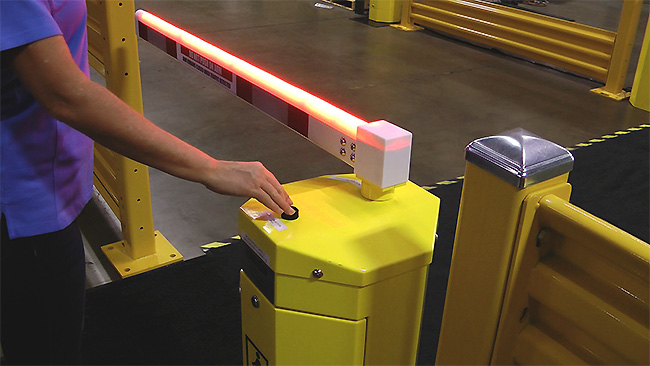

Gate is closed until a pedestrian presses the button on top of the gate control box, triggering flashing lights and an audible alarm. If there is no traffic detected, the gates open. If traffic is detected, the gates remain closed until traffic is no longer detected in the traffic lane
After opening, the gate will close after a programmed time delay unless sensors detect pedestrians remaining in the crosswalk
Pedestrian gate will refuse to open anytime a vehicle is detected in the traffic lane, even if pedestrian has pressed gate button to activate gate opening
The gate may be manually opened or closed using moderate pressure in the event of a power outage
Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
AisleCop® systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop® gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.

Documentation

AisleCop® Brochure (272 KB, PDF, Opens in new window)
AisleCop® ROI (171KB, PDF, Opens in new window)

Shipping

Lead Time: 14 weeks + transit time

Weight: 150.0 lbs. ea.

Get Shipping Estimate

Country:

Zip:

Warranty

Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
