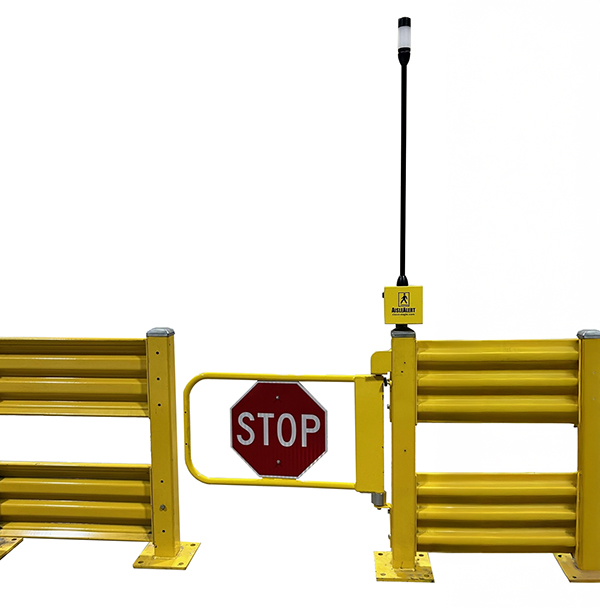

AisleCop Manual Pedestrian Safety Gate with AisleAlert Detection, 38" Opening

Automatic flashing light helps alert forklift drivers to the presence of pedestrians in the traffic lane

SKU: ACMGPDS

Manufacturer: Cisco-Eagle

AisleAlert safety gate detects the passage of pedestrians and triggers a bright, highly visible, LED strobe light and audible alarm to help alert forklift operators. The sturdy high-duty cycle gate, built for constant daily use, easily pushes open and swings closed. The 90" high alert strobe is at eye level for forklift operators, making it easier for drivers to spot. Adjust the strobe duration from 15 seconds to 1 minute by turning a knob; you can also adjust the audible alarm between 62 and 92 decibels or disable it. Guard rails not included. Custom sizes available upon request. Many types of installations with remote sensors and interconnected gate systems are possible with AisleAlert technology. Factory tested prior to shipment.

$5,304.52

Inquire

Images

Click on the thumbnails to see a larger image below.

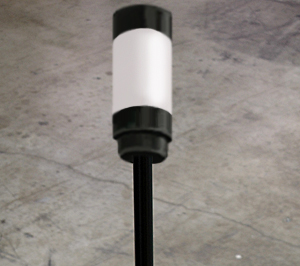

Close-up of LED strobe light

Specifications

Color: Safety Yellow
System Type: Manual Single Pedestrian Gate w/ AisleAlert
Overall Dimensions: 56"L x 10"W x 90"H
Open Gate Clearance: 38"W
Reflector Post Size: 4"L x 4"W x 50"H on 10" square base plate
Sensor Post Size: 4"L x 4"W x 43"H on 10" square base plate
AisleAlert Height: 48" including control box
Light Type: LED Red
Minimum audible intensity: 62 dB at 1 meter
Maximum audible intensity: 92 dB at 1 meter
Included: (1) Bi-directional heavy duty gate (2) stop signs (1) heavy duty hinge post (1) extended height heavy duty "striker" post with reflector (1) AisleAlert light kit, adjustable alarm and retro-reflective sensor
Weight: 194.0 lbs. ea.

Description

This system uses a light beam that shines across the pedestrian path at the gate opening. When the light beam is broken by someone going through the gate, the alert strobe light is triggered and will flash for a predetermined amount of time (time is adjustable).

The gate swings in both directions and automatically returns to the closed position after each use. The strobe light is set at a the approximate eye level of lift operators for best visibility.

Pedestrians take own responsibility for making sure the crossing is clear of oncoming traffic before entering the traffic zone.

Included:

Bi-directional high duty cycle gate with industrial spring loaded hinges
Orange pinch-point cover over hinges
2 reflective stop signs
Hinge post with base plate
Extended height striker post with base plate
AisleAlert light kit
Reflective target marker

Not included:

Installation

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.

AisleCop® systems are safety tools that designed to help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents, and they are not a substitute for comprehensive workplace safety programs or procedures. AisleCop® gates direct and manage traffic flow but are not impact-resistant barriers and will not stop forklifts or other industrial vehicles.

The effectiveness of any AisleCop® system depends in part on factors outside the control of Cisco-Eagle, including but not limited to Other critical factors, such as system and equipment maintenance, driver compliance, and pedestrian and /individual compliance, enforcement of crossing lanes, and accurate assessment of safe crossings conditions. Users are solely the responsible for these and all other safety measures.

Use of an AisleCop® system is at the user’s own risk. Users must follow all safety instructions, warnings, and applicable laws. AisleCop® systems are intended for professional environments and should be operated only by trained and qualified personnel. No representation is made or implied that the system can prevent all accidents, injuries, or losses.

Shipping

Lead Time: 5 weeks + transit time

Weight: 194.0 lbs. ea.
